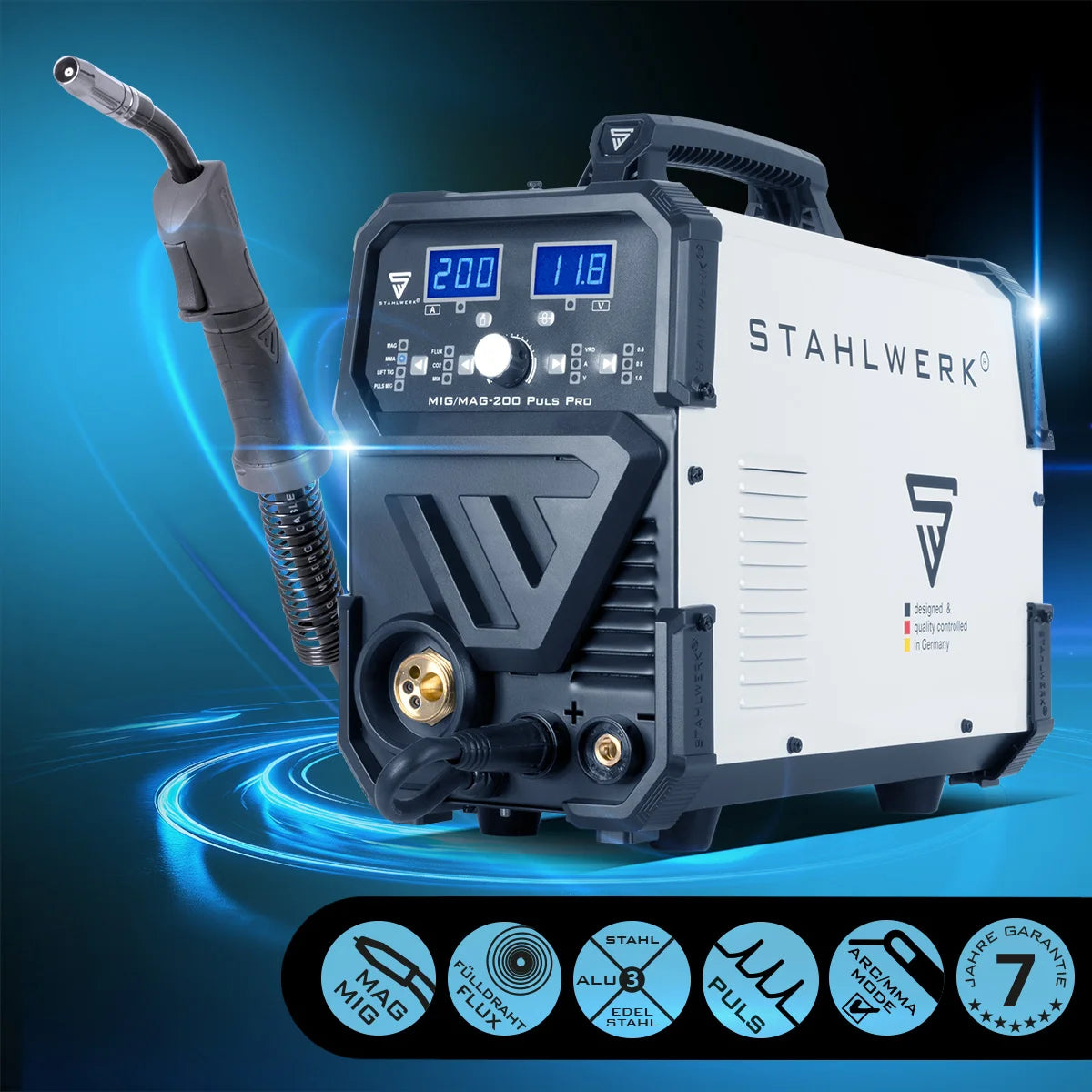

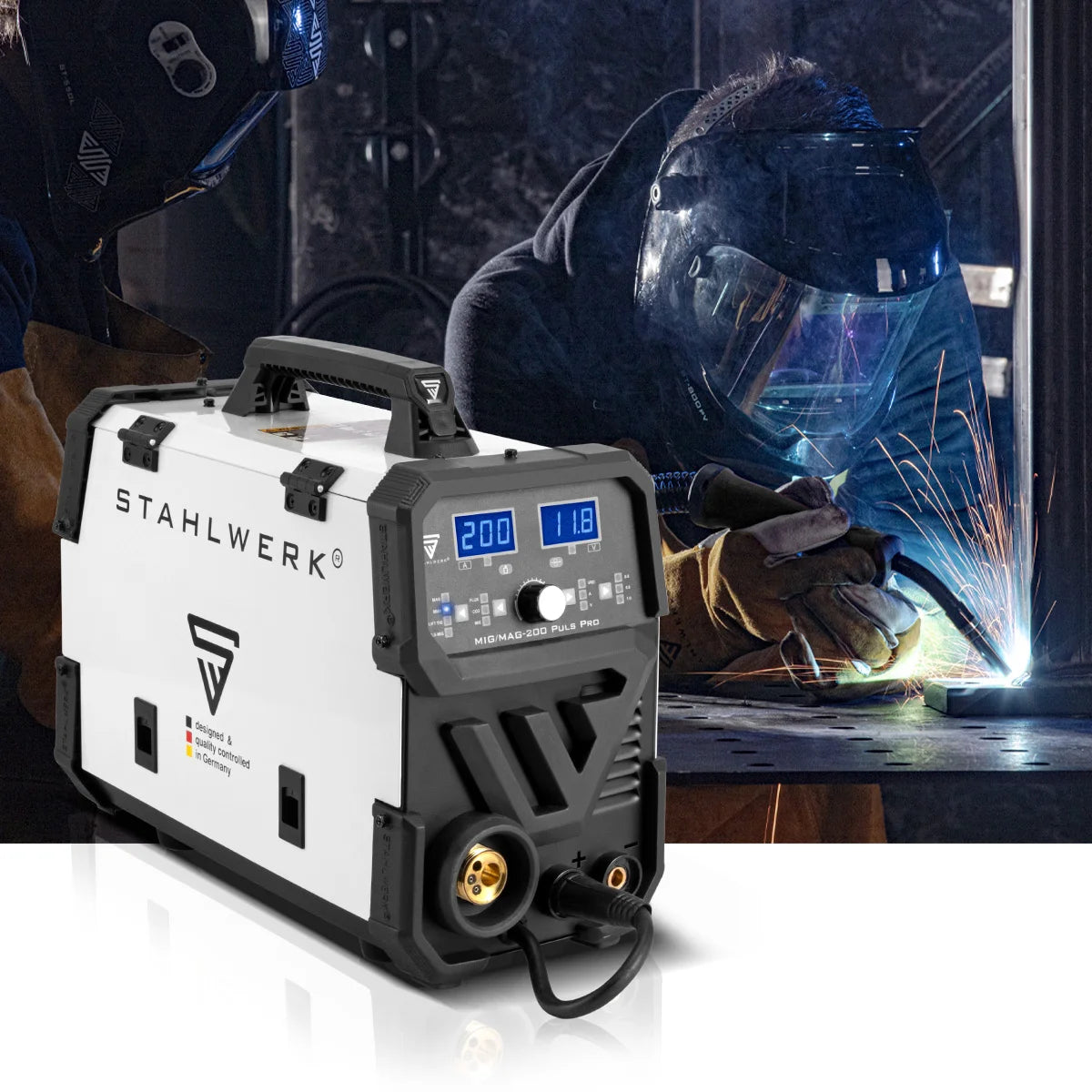

STAHLWERK MIG MAG 200 Puls Pro inert gas welding machine Fully synergic 5 in 1 combination device with real 200 A and 4 rollers drive, cored wire, MIG MAG, ARC MMA, Lift TIG, MIG Pulse for aluminum welding

• MIG/MAG - metal arc welding with direct current (DC). Welding can be carried out with inactive/inert (MIG, e.g. argon) or with active (MAG, e.g. CO2) gases. Gas and welding wire come from a torch head and enable welding work to be carried out with just one hand.
• Various welding parameters can be set. It is suitable for precise welding of thin sheet metal as well as sheet metal and stainless steel. Due to the pulse function, the MIG/MAG-200 Puls Pro is also suitable for aluminum.

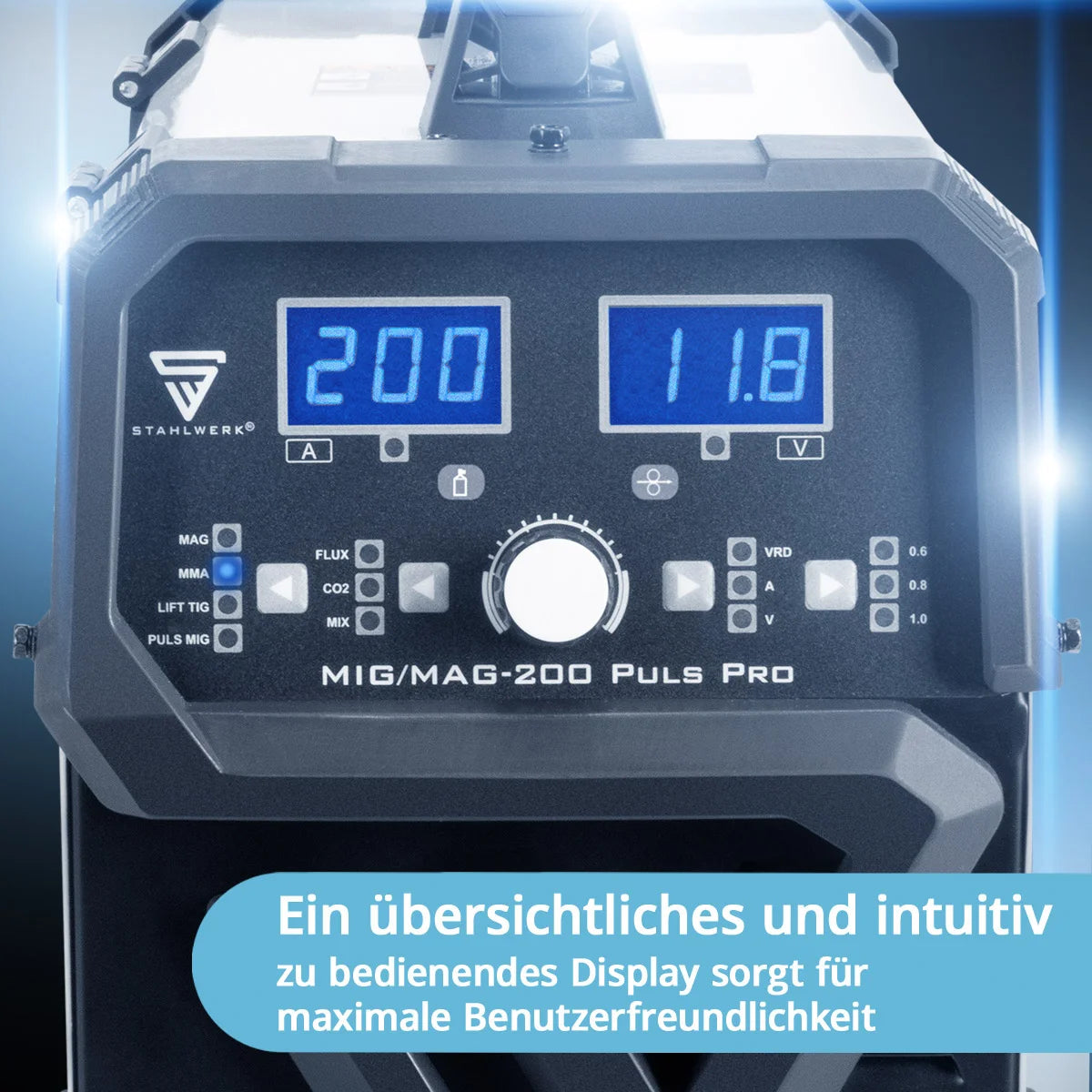

• Fully synergic device: The voltage (volts) and also the wire feed are always adjusted automatically based on the set welding current. This makes the device very easy to use, especially for beginners.
• 5 in 1 combination device - MIG/MAG, cored wire, lift TIG, MMA & pulse MIG welding is possible up to 200 A.
• IGBT technology - Latest and most modern transistor technology enables maximum performance and a long duty cycle (ED)! No transformer, no MOSFET, state-of-the-art IGBT!

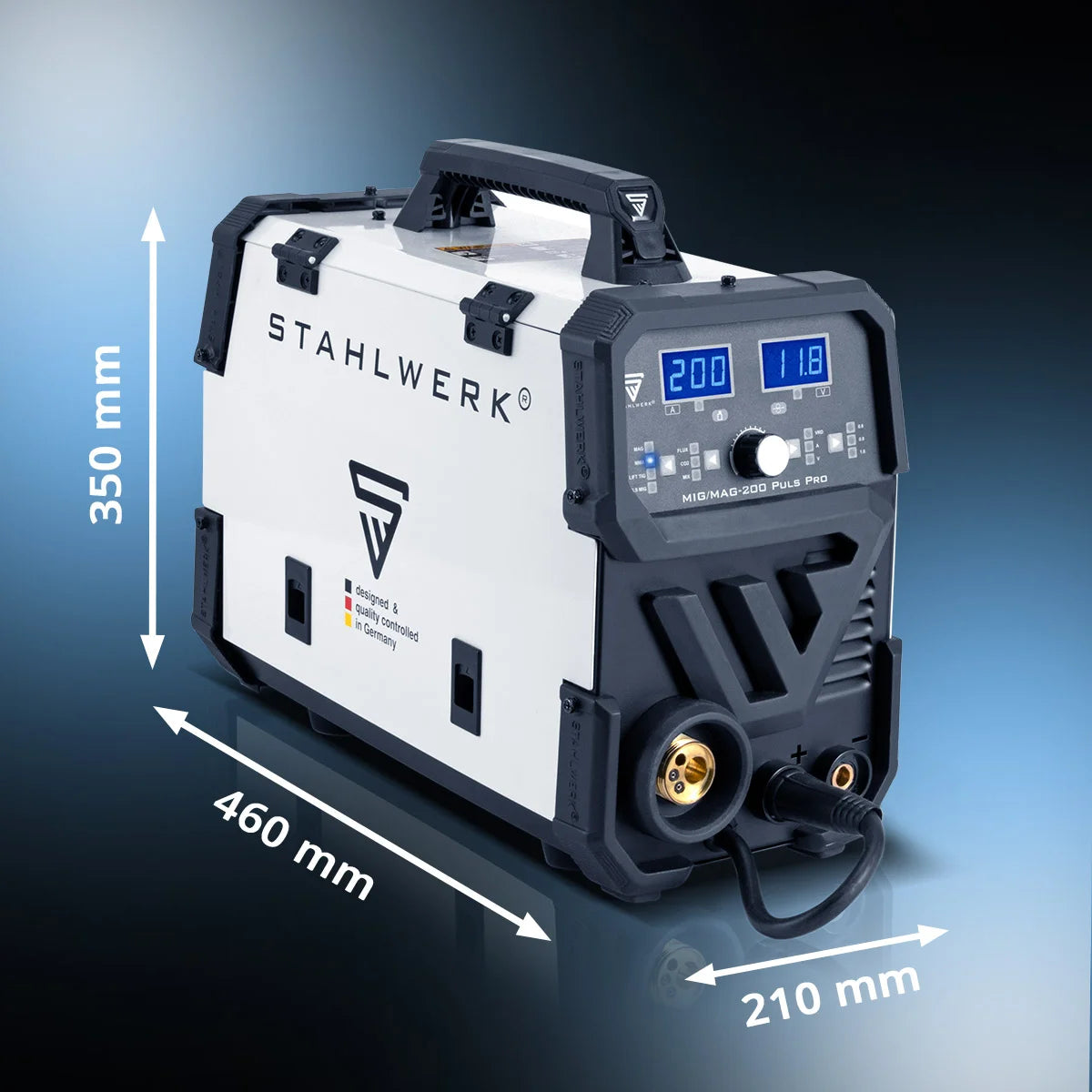

• Lightweight & compact design - only 10.8 kg weight and dimensions of 460 x 210 x 350 mm. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!

• Highest efficiency & performance - Single-phase alternating current (230 V) supplies the welding machine and allows an output power of real 200 amps.
• Smart cooling & overheating protection - State-of-the-art technology, integrated overheating protection and high-performance cooling enable maximum performance to be achieved.
• Cored wire - all of our devices can use flux cored wire. This makes welding possible without inert gas.
• Automatic wire feed - the speed of the wire feed is automatically controlled based on the set welding current.
• Automatic voltage regulation (volts) - the voltage automatically adapts to the set welding current.
• Wire roll - Commercially available 1 kg and 5 kg wire rolls can be processed here. The universal bobbin mandrel can hold both 16 and 50 mm bobbins.
• 4 roller drive - by simply changing the drive rollers of 0.6 mm & 0.8 mm, different wire thicknesses can be used. By switching to 1.0 mm & 1.2 mm drive rollers with 'U' profile, aluminum wire can also be used.
• MMA electrode welding / MMA welding - is a universal welding process. No protective gas is required.
• Lift TIG - With a separately available hose package (not included in delivery), the device can also be used for DC TIG welding (string ignition).
• MIG Pulse - the pulse function keeps heat input low and enables welding of aluminum.
• VRD (Voltage Reduction Device). Manual on/off switching of the VRD function allows the output voltage of the welding machine to be reduced to a safe level to protect the operator when touching the electrode while not welding is in progress.

Note: The device is not intended for use in residential areas where power is supplied via a public low-voltage supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.

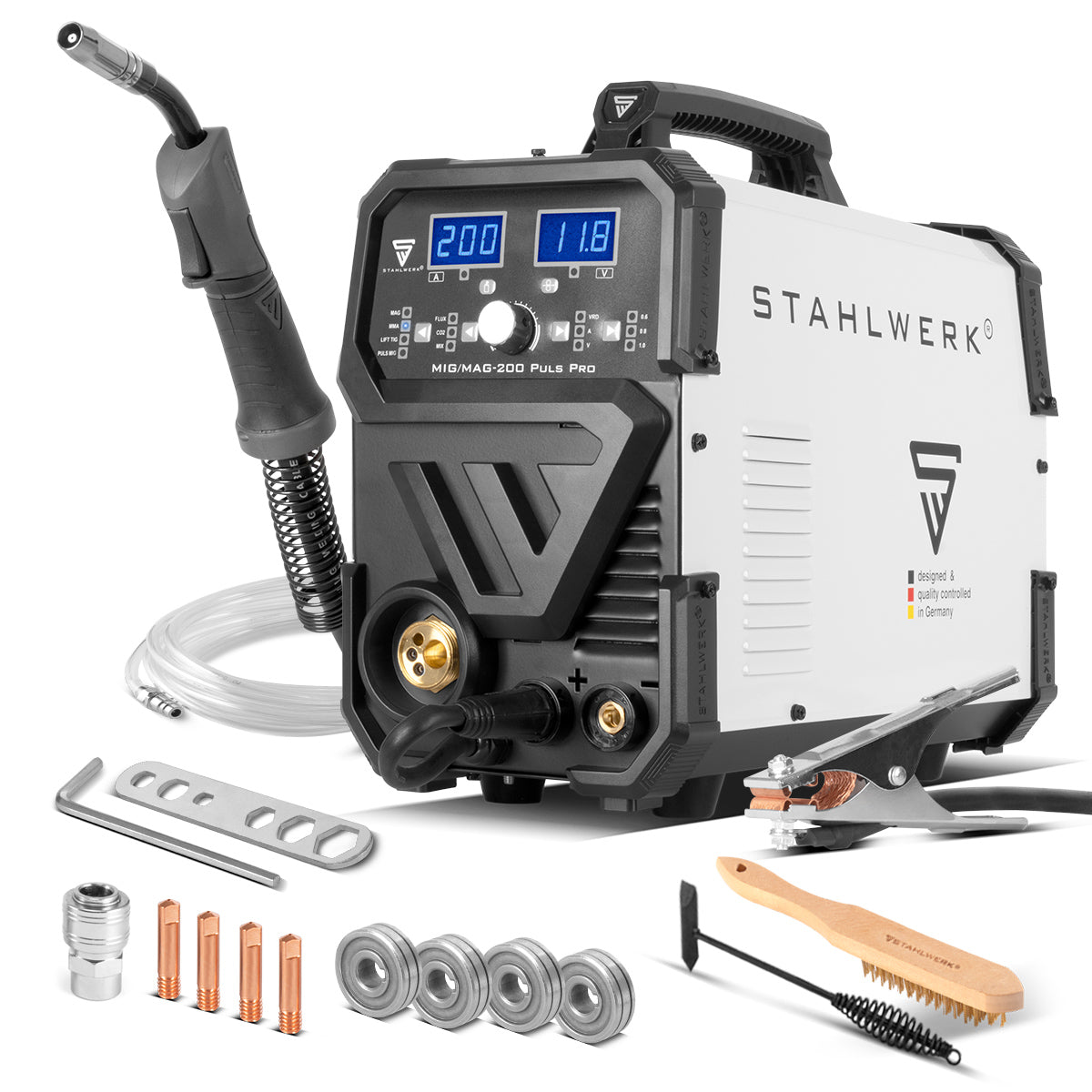

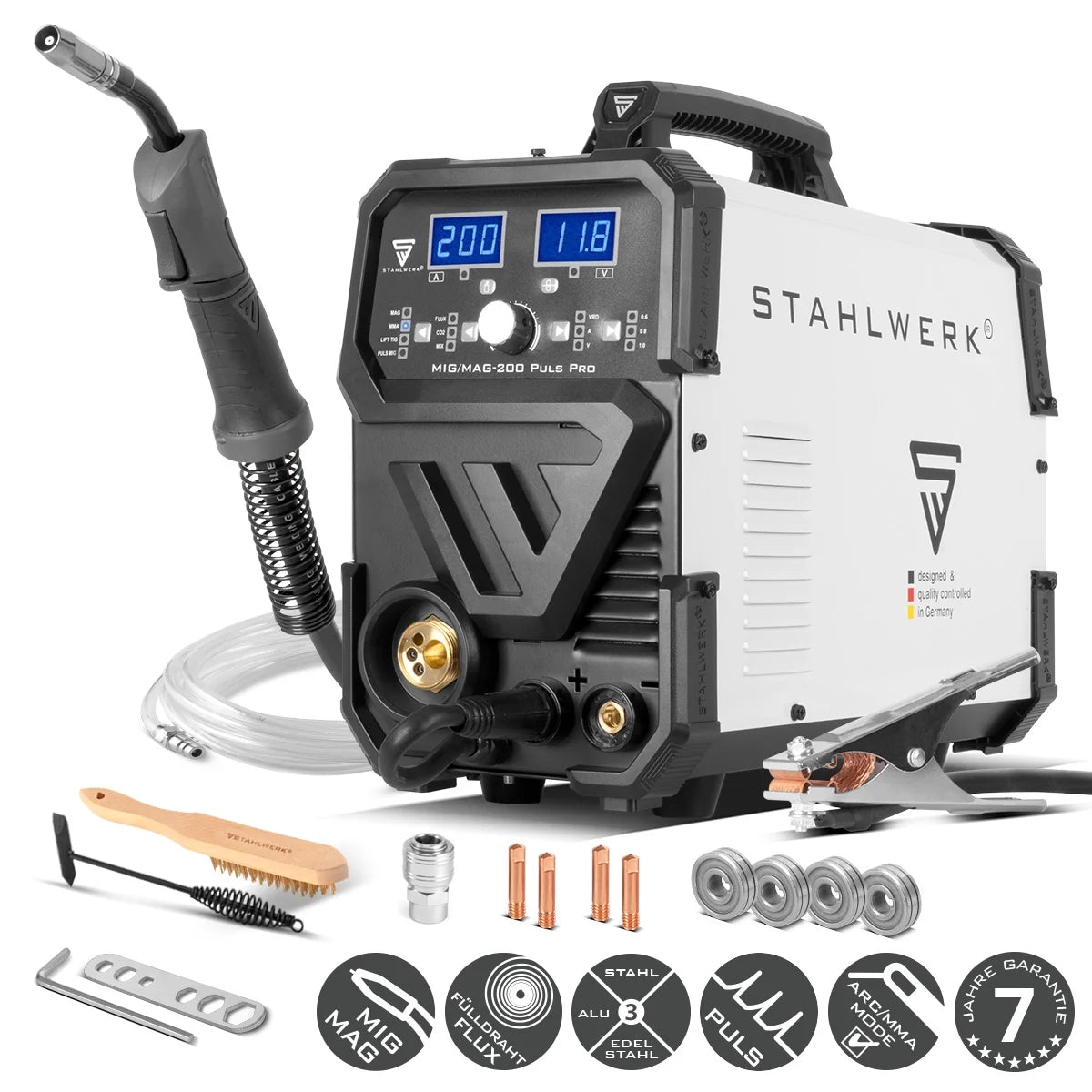

• 1 x welding machine STAHLWERK MIG/MAG 200 Puls Pro
• 1 x professional MIG welding torch AK-15 / hose package 3 meters
• 1 x ground cable 3 meters
• 1 x contact tip M6 x 28 - ø 1.0 mm for aluminum
• 1 x contact tip M6 x 28 - ø 0.6 mm for steel
• 1 x contact tip M6 x 28 - ø 0.8 mm for steel
• 1 x contact tip M6 x 28 - ø 1.0 mm for steel
• 2 x wire guide rollers 0.8 mm & 1.0 mm with 'V' profile (already installed in the device)
• 1 x STAHLWERK wire guide rollers set of 4 V 0.6/0.8 + U 1.0/1.2
• 1 x Wire Brush
• 1 x gas connection hose with quick coupling 5 meters
• 1 x Protective Case
