Stahlwerk

Stahlwerk cut 60 pilot igbt full equipment plasma cutter with 60 amps pilot, up to 24 mm cutting performance, for painted sheets & flight grost

Sku: 1184-6932
2-4 working days delivery time
OfferCHF 489.90

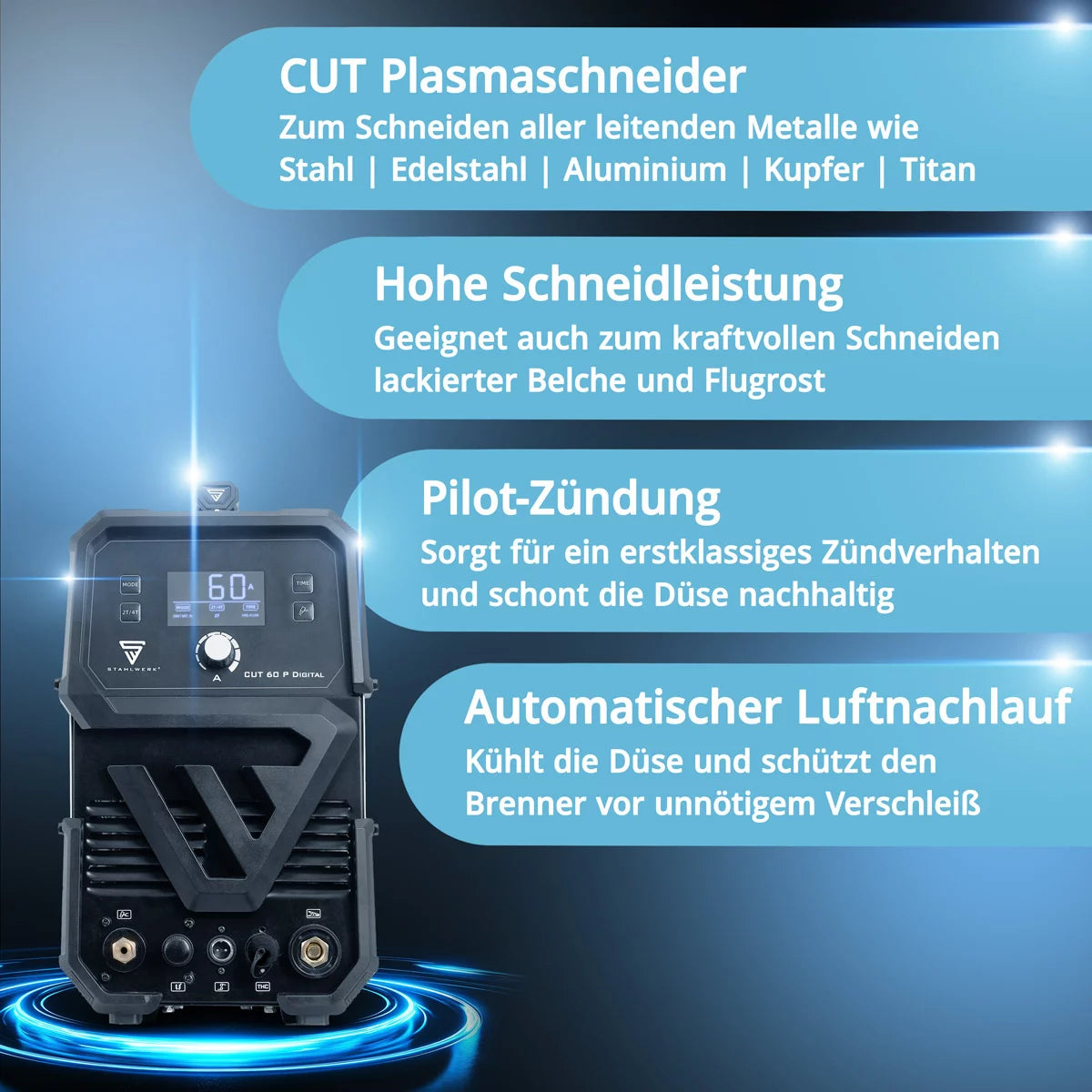

The STAHLWERK plasma cutter CUT 60 P Digital is a powerful and compact cutting inverter for the precise cutting of electrically conductive metals. The continuously adjustable cutting current of 30 to 60 A covers a wide range of applications - from thin sheets to solid structural steel plates. The HF pilot ignition ensures comfortable, contactless ignition of the plasma arc; alternatively, a contact start is available. Depending on the material, cuts of up to 20 mm are possible for mild steel (ST37), 8-10 mm for stainless steel (V2A/V4A) and 5-8 mm for aluminum. Even painted and slightly rusted workpieces can be processed cleanly and efficiently. The integrated smart cooling, overheating protection and protection class IP21S ensure reliable and long-lasting operation. Thanks to the THC interface, the CUT 60 P Digital can be operated with CNC systems to automatically regulate the torch distance to the workpiece based on the arc voltage. The CUT 60 P Digital also has the operating modes “MESH METAL” and “SHEET METAL”. The “MESH METAL” mode is particularly suitable for workpieces with a grid structure or interruptions where the arc can briefly lose contact. The “SHEET METAL” mode is recommended for continuous sheets where an even cut is guaranteed. The air pre- and post-flow time can be set individually on the device. A longer post-flow time improves cooling and thus contributes to extending the service life of wearing parts. The STAHLWERK CUT 60 Pilot IGBT plasma cutter is delivered with an extensive accessories package and is ready for immediate use.

Free shipping in Switzerland and Liechtenstein!
30 day money back guarantee
Purchase on account

Functions

  • Plasma / CUT - Electricity is used to generate a plasma jet that melts the material, which is then removed with compressed air. This means that all conductive metals such as standard steel, stainless steel, copper, aluminum, titanium and much more can be cut precisely with ease.
  • Cutting thickness - Separating cuts are possible up to 20 mm depending on the material. Structural steel ST37 15-20 mm, V2A or V4A 8-10 mm, aluminum 5-8 mm.
  • Pilot ignition - high frequency (HF) pilot ignition for first-class ignition behavior. No contact with the workpiece necessary! The pilot flame creates the arc. This burner can be operated with a spacer included in the scope of delivery.
  • Cutting current - Continuously adjustable from 30 to 60 A. A THC interface enables connection to CNC gantry systems and automatic regulation of the torch distance via the arc voltage - ideal for precise series and contour cuts.
  • High quality guide carriage / trolley / spacer for P60 plasma torches, enables precise cutting and provides a consistent torch position.
  • “MESH METAL” operating mode - is particularly suitable for workpieces with a grid structure or interruptions where the arc can briefly lose contact.
  • “SHEET METAL” operating mode - recommended for continuous sheets where an even cut is guaranteed.
  • Setting the pre-flow and post-flow - With this function, the air pre- and post-flow time can be set individually.

Properties & advantages

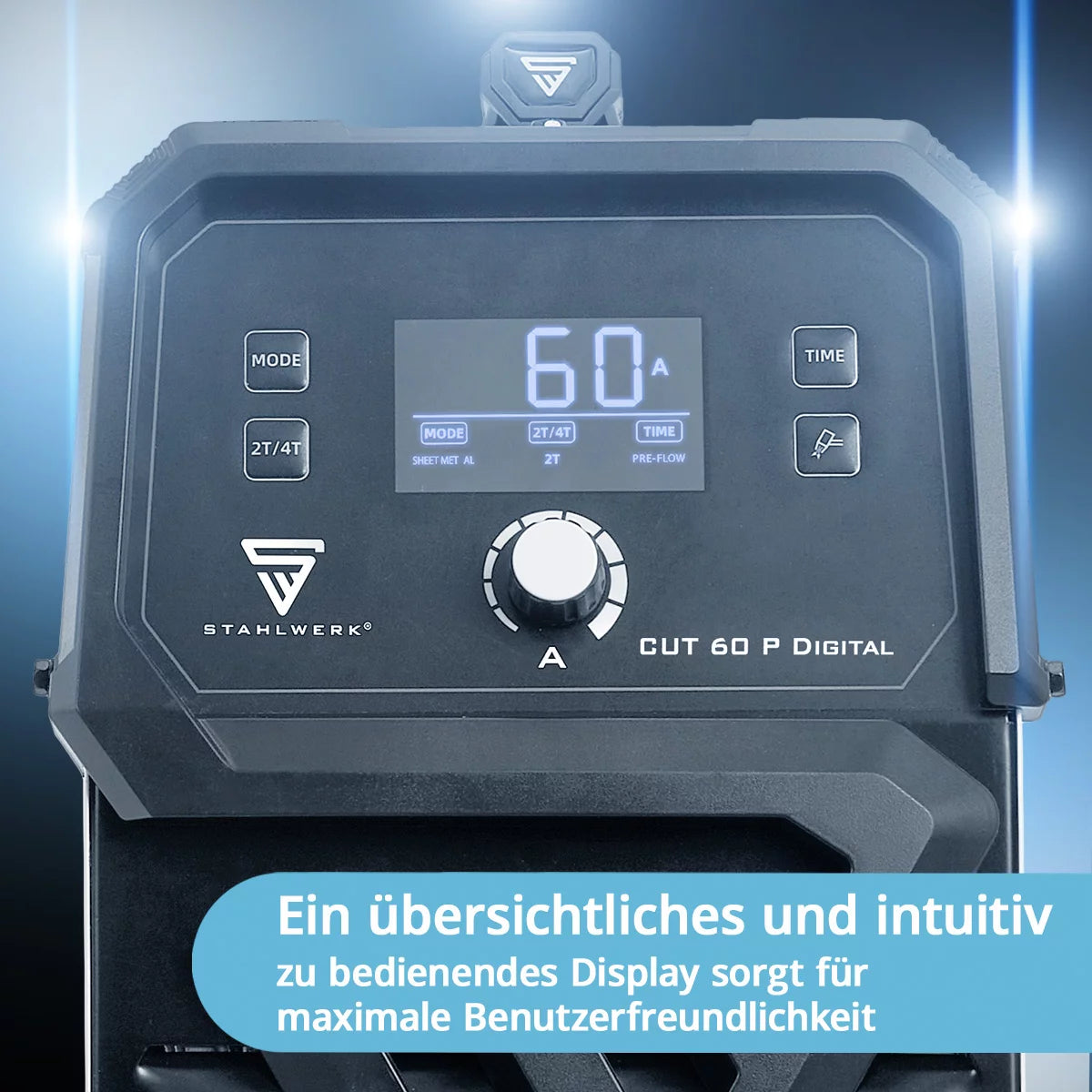

  • Convenient operation – Clearly structured front panel with digital display, 2T/4T switchover, gas test and post-flow time makes it easier to set all relevant parameters.
  • IGBT technology - Latest and most modern transistor technology enables high performance when welding! No transformer, no MOSFET, state-of-the-art IGBT!

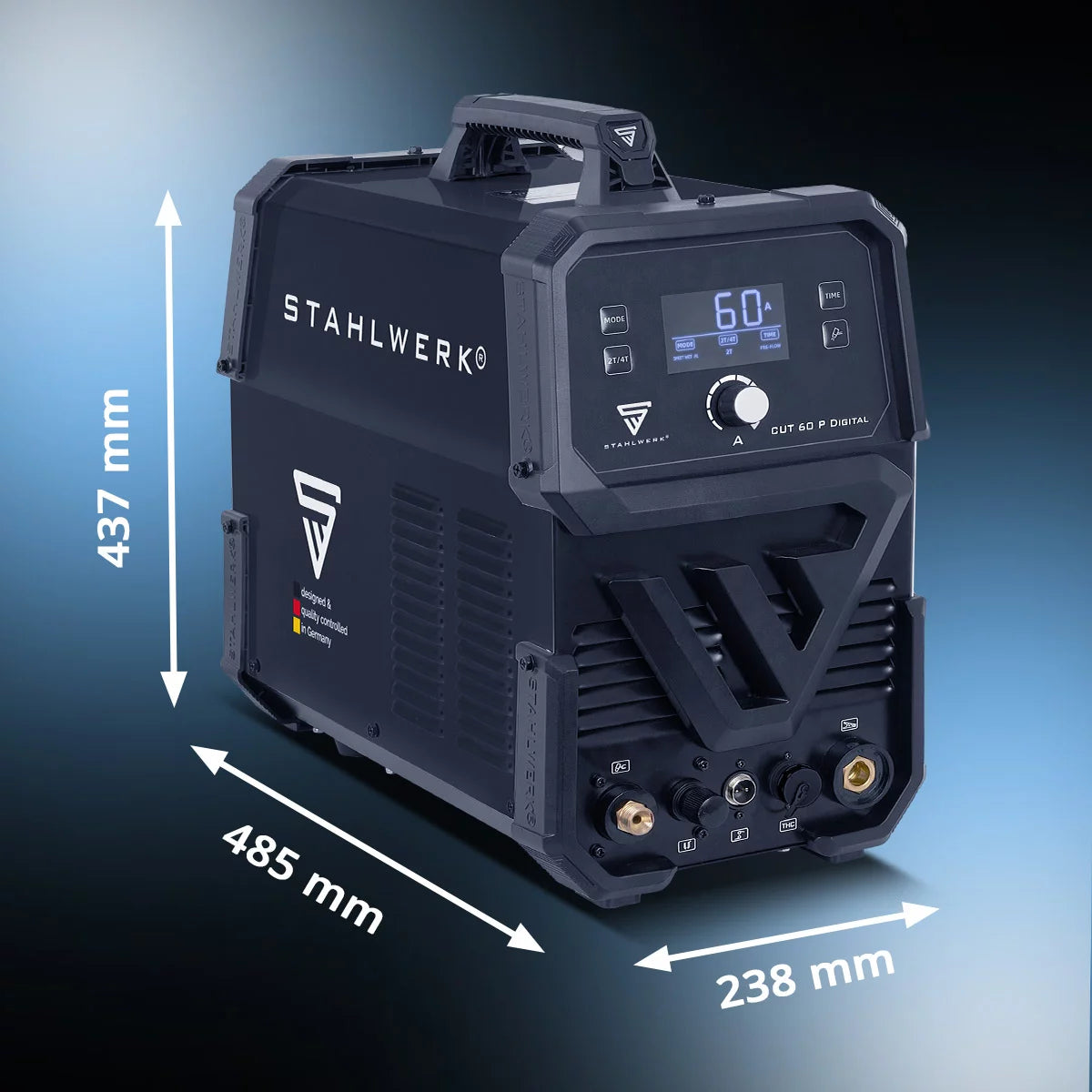

  • Lightweight & compact design - With a weight of 19.2 kg and dimensions of 485 x 238 x 437 mm, the device is easy to transport and ideal for carrying out demanding cutting work. Innovative IGBT transistors save space and weight compared to old MOSFET technology.
  • Highest efficiency & performance - three-phase alternating current (400 V) supplies the device and allows an output power of real 60 amps.
  • Smart cooling and overheating protection - State-of-the-art technology, integrated overheating protection and high-performance cooling enable maximum performance to be achieved.

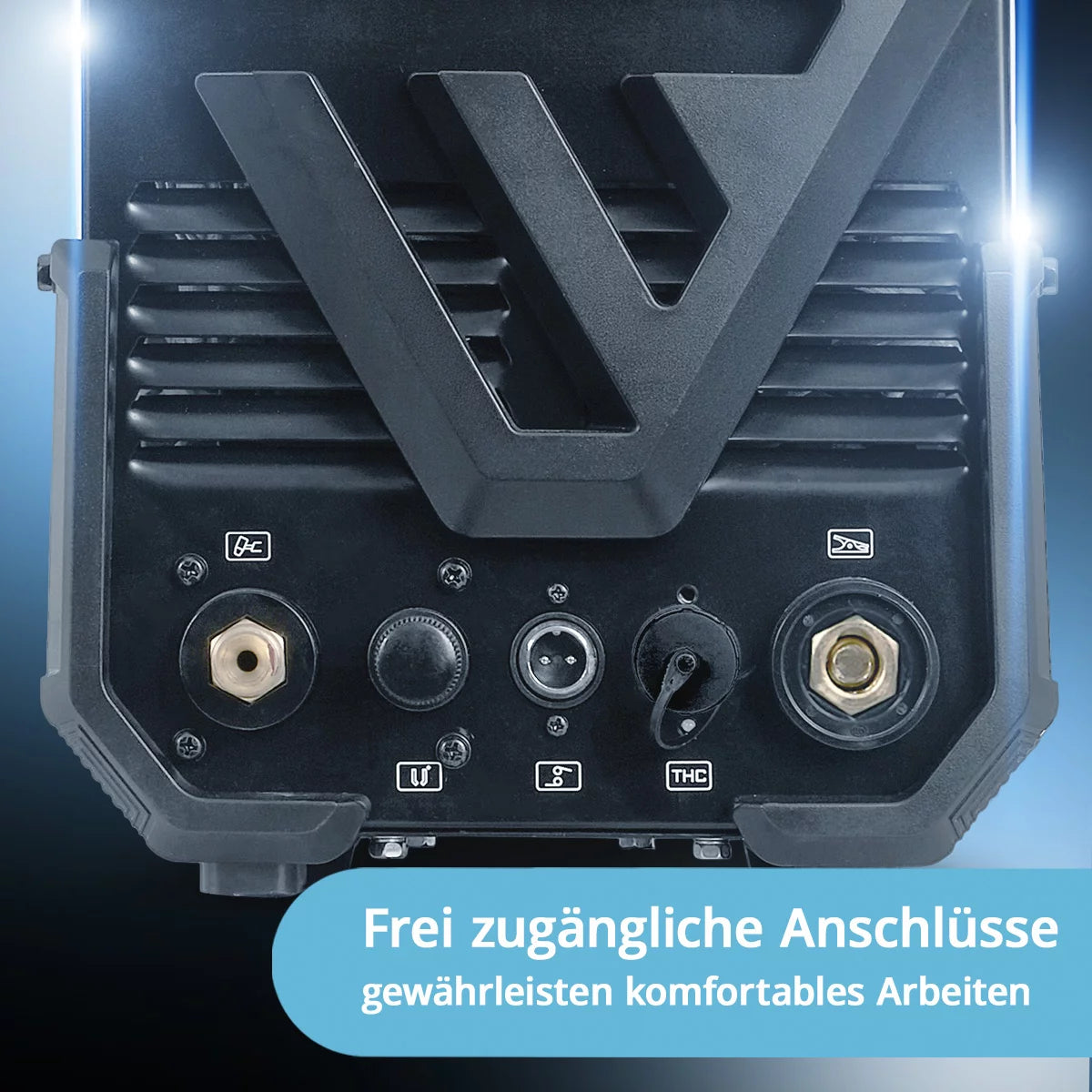

  • Torch Height Control (THC) – The CUT 60 P plasma cutter is equipped with a 2-pin connector (THC) for torch height control. This connection is intended for direct reading of the cutting voltage from a torch height control. The arc voltage is measured during the cutting process and transmitted to the CNC control. This allows the CNC system to maintain the correct torch height regardless of variations in material or cutting surface flatness. In this way, a constant distance to the workpiece is guaranteed at all times.

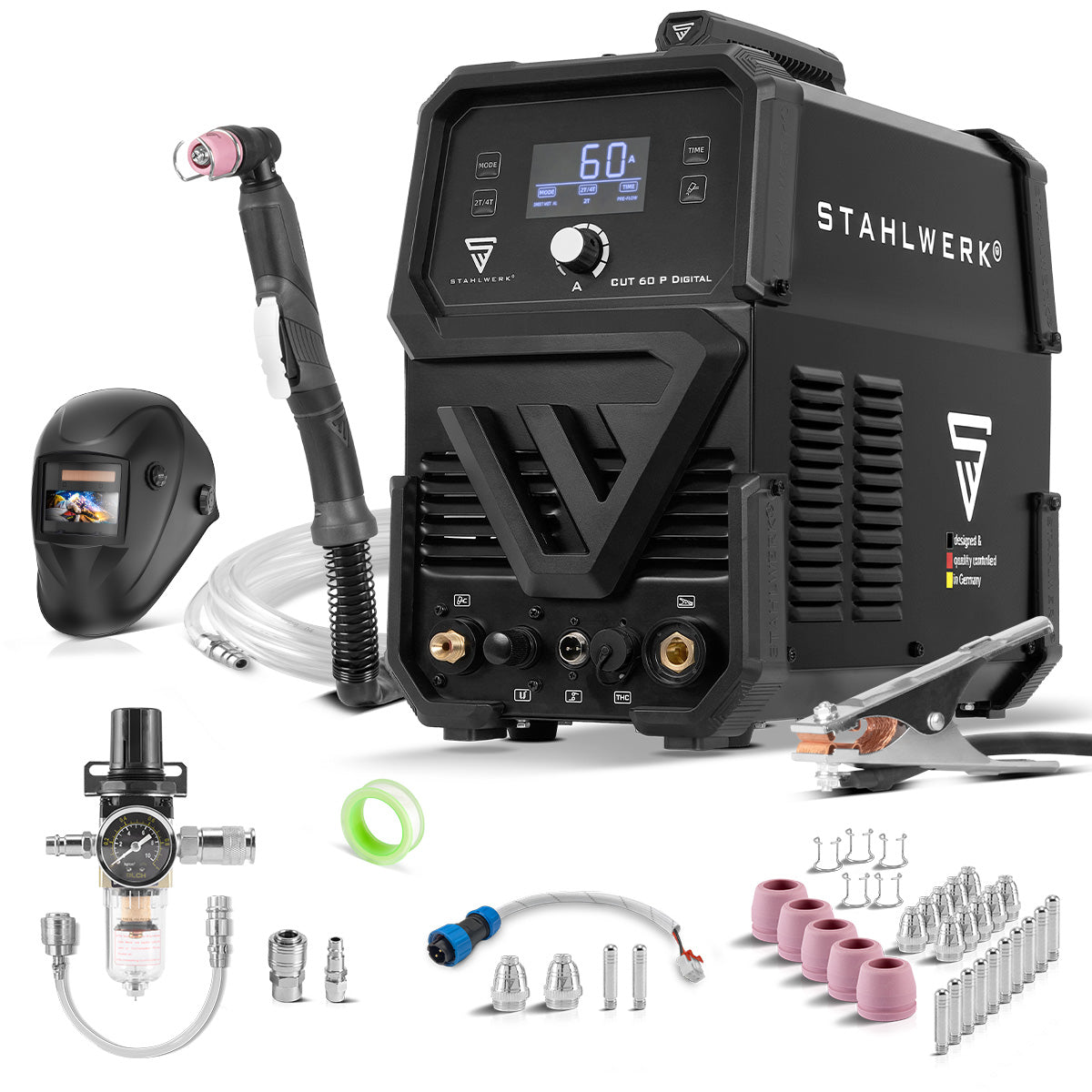

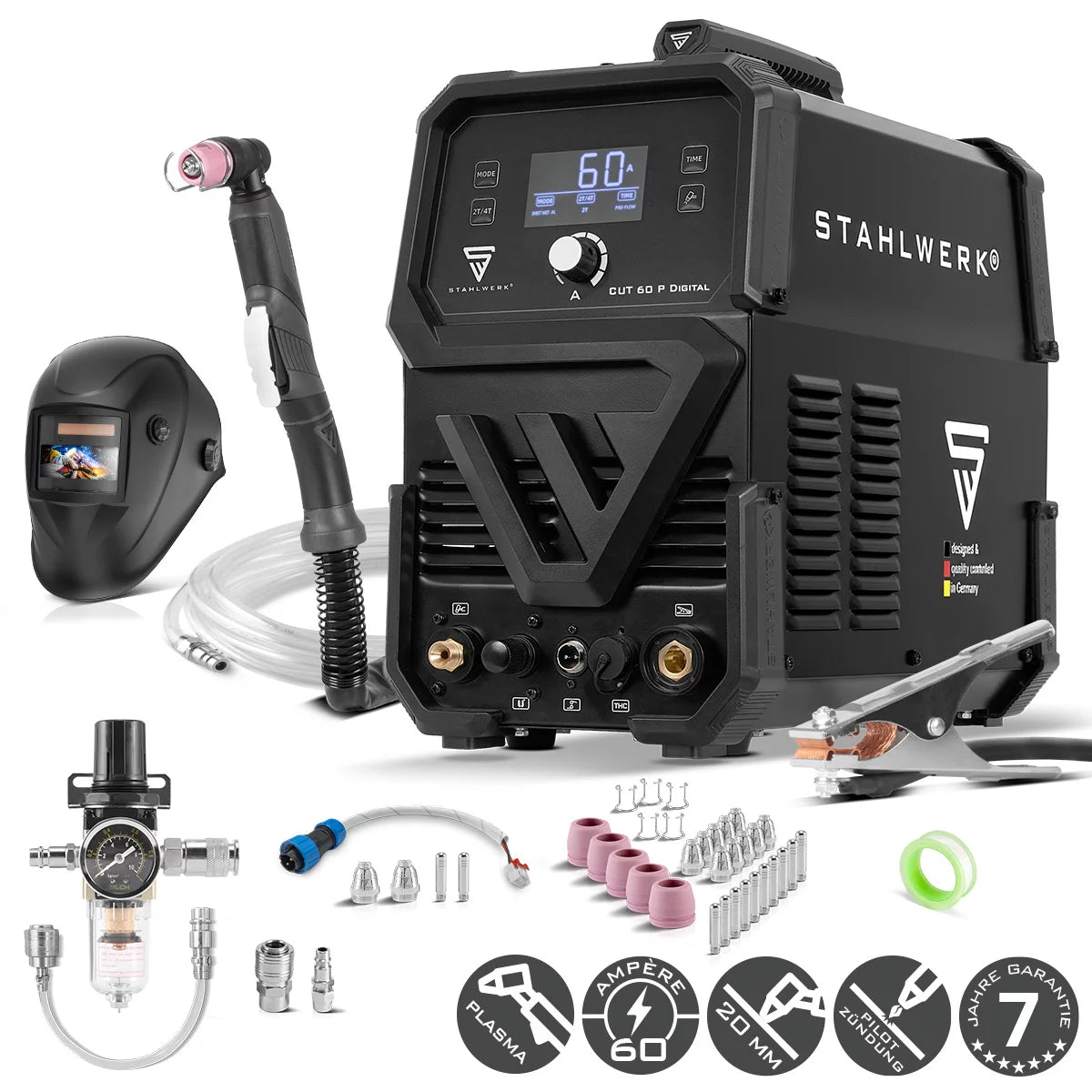

Scope of delivery

  • 1 x STAHLWERK plasma cutter CUT 60 P
  • 1 x professional plasma hose package 3 meters with P60 torch
  • 1 x THC Controller Cable
  • 1 x 4-piece plasma accessory set (this is already pre-assembled on the plasma torch):
    - 1 x plasma nozzle
    - 1 x Plasma Electrode
    - 1 x Ceramic Cap
    - 1 x Spacer
  • 1 x ground cable 3 meters
  • 1 x water separator with pressure gauge and snap-on quick couplings
  • 1 x connecting hose with snap-on quick couplings from the device to the water separator, including 4-piece connection set
  • 1 x air connection hose with snap-on quick coupling 5 m
  • 1 x Teflon tape
  • 1 x Protective Case
  • 1 x original wearing parts set of 30 pieces for plasma cutting torch P-60
  • 1 x professional welding helmet
